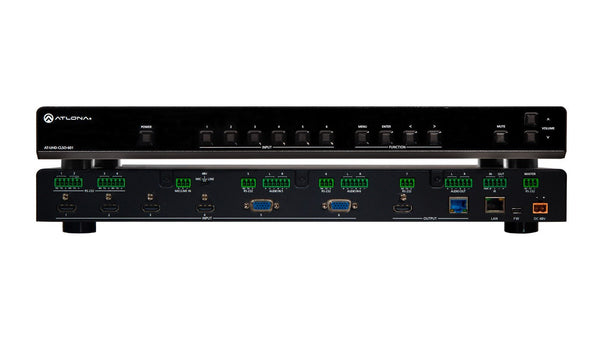

Atlona AT-UHD-CLSO-601 4K/UHD, 6-Input Multi-Format Switcher with Mirrored HDMI and HDBaseT Outputs, PoE and Auto-Switching

Model: AT-UHD-CLSO-601
Quick ID: 2260363781
Condition: New iElectronics is an Authorized Atlona Retailer - All products come with a 10 year manufacturer warranty
Please wait... Loading Today's Best Price

Product Details







Product Description

The Atlona AT-UHD-CLSO-601 is an advanced six-input, multi-format switcher with built-in 4K scaling and mirrored HDBaseT and HDMI outputs. It simplifies classroom and small office system integration by providing four HDMI and two multifunction analog inputs, to enable the use of both new and legacy sources with HDMI displays. Professional audio features such as a microphone input with 48 volt phantom power and ducking are also included, allowing the switcher to address a wide array of AV switching and processing needs often encountered in classrooms, conference rooms, boardrooms, training rooms and other presentation settings.

Features

Four HDMI inputs

  • Digital inputs to support up to four DVI, HDMI and DisplayPort sources
  • Works with PCs, Blu-ray players, document cameras, teleconference systems, wireless solutions with industry standard digital audio/video outputs

Two multi-function analog inputs on 15-pin HD connectors

  • Accepts RGBHV, component, S-video, or composite signals using common adaptors and break out cables
  • Provides input options for legacy analog sources

Mirrored, dual outputs on HDBaseT and HDMI

  • Supports dual display applications with both local and extended distance displays up to 328 feet (100 meters)
  • Eliminates cost associated with extra extension components; simplifies installation. HDMI output allows additional HDBaseT transmitter for dual long distance applications. Compatible receivers: AT-UHD-EX-100CE-RX (100 meter with control)

4K/UHD @ 30 Hz capability

  • Compatible with Ultra High Definition sources and displays
  • Supports high resolution applications such as CAD, desktop publishing, and detailed financial reporting

Built-in 4K scaler

  • Scales to and from most resolutions up to 4K to optimize content from any source to any monitor or projector up to 4K
  • Eliminates the need for external scaling components

AV, Ethernet, and control over HDBaseT

  • Delivers 4K/UHD video, audio, 100BaseT Ethernet, and control through a single cable
  • Eliminates multiple cable runs between source, control system router and display

Power over Ethernet for remote-powered HDBaseT receiver

  • Industry standard IEEE 802.3af PoE supplied by the switcher over HDBaseT
  • No local AC outlet required saves time and integration costs

Auto-switching

  • Selects last connected HDMI or VGA source
  • Reduces complexity or eliminates control system completely

TCP/IP, RS-232, and IR, control

  • Compatibility with third-party control systems provides flexible control options
  • Reduces integration time and costs

EDID management

  • Manages EDID communications between source and switcher; allows integrators to force sources to preferred resolution
  • Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device

HDCP management

  • Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems while protected content is not transmitted
  • HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices, and codecs

Balanced line/mic input with 48V phantom power

  • Provides professional audio input for wired and wireless microphones
  • Saves installation costs by eliminating external audio mixer

Microphone ducking with advanced controls

  • Automatically reduces program audio levels when mic is used
  • Ensures optimized voice-over performance

Audio de-embedding

  • De-embeds PCM audio from HDMI inputs to analog audio output
  • Provides audio signal routing to sound system

Independent audio input switching

  • Switches analog audio inputs separately from video sources; allows analog audio signal embedding for DVI sources
  • Simplifies audio signal management from DVI sources

Balanced, stereo audio output on 6-pin captive screw connector

  • Interfaces with analog commercial sound systems
  • Maintains proper audio gain structure; eliminates adaptors

Adjustable volume and EQ

  • Features independent gain control for each input, master audio level control, bass and treble EQ adjustment
  • Optimizes audio signals eliminating the need for an external mixer

Front panel volume and mute controls

  • Volume Up and Volume Down buttons adjust output level to sound system
  • Provides quick level adjustment for operators

Easy, GUI-based configuration using integrated web server

  • Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID and HDCP management and audio
  • Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone or PC in the field

IP to RS-232 translation

  • Converts TCP/IP commands to RS-232 commands for output to external devices
  • Enables single IP connection to control processor to control both IP and RS-232 connected devices.
  • Faster installation

Eight RS-232 ports

  • Multiple bidirectional, RS-232 ports to control other devices in the system
  • Reduces cost associated with complex control processors

Ethernet, RS-232 and IR HDBaseT insertion

  • Adds control signals to the HDBaseT transmission including Ethernet, RS-232 and bi-directional IR
  • Simplifies display control from third-party control systems

Rack mountable 1U, full rack width enclosure

  • Installs easily in rack mounted systems with included 19" rack and wall mount brackets
  • Reduces installation time and cost

Included accessories

  • User guide, desktop power supply, detachable power cable, IR hand held remote control, rack mount bracket kit

Award-winning 10 year limited product warranty

  • Ensures long-term product reliability and performance in residential and commercial systems
  • Specify, purchase, and install with confidence
General Information
Manufacturer Atlona
Manufacturer Part Number AT-UHD-CLSO-601
Video Resolutions
VIDEO 4096×2160@24/25/30Hz, 3840×2160@24/25/30Hz (UHD), 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800, 1280×768, 1152×864, 1024×768, 800×600, 640×480
Composite/S-Video NTSC, NTSC4, PAL, PAL-M, PAL-N, SECAM
Audio
Analog Output PCM 2Ch (de-embedded)
HDMI/HDBaseT Output PCM 2Ch, supports up to DTS-HD Master Audio and Dolby TrueHD on pass through
Distance
CAT5e/6 @ 4K up to 70 meters or up to 230 feet
CAT6a/7 @ 4K up to 100 meters or up to 328 feet
CAT5e/6 @ 1080p up to 100 meters or up to 328 feet
HDMI IN/OUT @ 4K up to 5 meters or up to 15 feet
HDMI IN/OUT @ 1080p up to 10 meters or up to 30 feet
Signal
Bandwidth 10.2 Gbps
HDCP Switchable – Compliant / Non complaint
Connector
Firmware Mini-B USB
HDBaseT RJ45 (8P8C)
HDMI Type A
VGA 15-pin HD d-sub, accepts RGBHV, component, composite, or S-video with adaptor
LAN RJ45 (8P8C), TCP/IP control
IR 5-pin captive screw
RS-232 3-pin captive screw
Audio 5-pin captive screw
Power 2-pin, 48V captive screw
Temperature
Operating 0°C to 50°C/32°F to 122°F
Storage -20°C to 60°C/-4°F to 140°F
Humidity 20 to 90% non-condensing
Power
Consumption 33W
Idle Consumption 3.1W
Supply
  • Input: AC100~240V 50/60Hz
  • Output: DC 48V/3.125A
Dimension
H x W x D 44 x 433.8 x 255 (mm)/1.73 x 17.08 x 10.04 (inch)
W/feet 55.15 x 433.8 x 255 (mm)/2.17 x 17.08 x 10.04 (inch)
Rack Unit 1
Weight
Device 3.12kg/6.90lbs
Shipping 5kg/11.02lbs
Certification
Power Supply CE, FCC, cULus, RoHS, CCC, RCM
Unit CE, FCC
