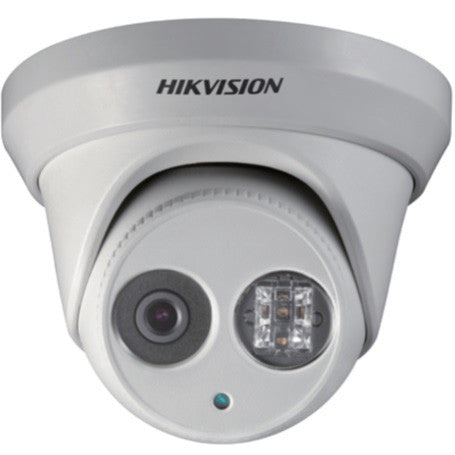

Hikvision DS-2CD2332-I-4MM 4mm 3MP HD IP66 EXIR Outdoor Turret Network Camera

Model: DS-2CD2332-I-4MM

Quick ID: 8812987282

Condition: New

Please wait...

Loading Today's Best Price

Your Price: ^$

693.64

Product Details

Product Description

Camera

Image Sensor:	1/3" Progressive Scan CMOS
Signal System:	PAL/NTSC
Min. Illumination:	0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time:	1/25(1/30) s to 1/100,000 s
Lens:	4mm@ F2.0 (2.8mm, 6mm, 12mm optional) 2048 × 1536: Angle of view: 86°(2.8mm), 70°(4mm), 43.3°(6mm), 20.6°(12mm) 1920 × 1080: Angle of view: 98.5°(2.8mm), 79°(4mm), 49°(6mm), 23.2°(12mm)
Lens Mount:	M12
Adjustment Range:	Pan:0° - 360°, Tilt: 0° - 75°, Rotation: 0° - 360°
Day& Night:	IR cut filter with auto switch
Wide Dynamic Range:	Digital WDR
Digital noise reduction:	3D DNR

Compression Standard


Max. Image Resolution:	2048×1536
Frame Rate:	50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720) 60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)
Image Settings:	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC:	Yes, zone configurable
ROI:	Yes, up to 4 configurable areas

Network

Network Storage:	NAS
Alarm Trigger:	Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols:	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security:	User Authentication, Watermark, IP address filtering, anonymous access
System Compatibility:	ONVIF, PSIA, CGI, ISAPI

Interface

Communication Interface:

1 RJ45 10M / 100M ethernet interface

General

Operating Conditions:	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:	12 VDC ± 10%, PoE (802.3af)
Power Consumption:	Max. 5.5 W (Max. 7.5 W with IR cut filter on)
Weather Proof:	IP66
IR Range:	-I: Approx 20 to 30 meters(65.6-98.4ft)
Dimensions:	F127×97.5 (5.0" × 3.8")
Weight:	670g (1.5 lbs)

General Information
Manufacturer	Hikvision USA, Inc
Manufacturer Part Number	DS-2CD2332-I-4MM
Brand Name	Hikvision
Product Series	EXIR
Product Model	DS-2CD2332-I
Product Name	3MP EXIR Turret Network Camera
Product Type	Network Camera
Display & Graphics
Image Sensor Type	CMOS
Color Supported	Color
Effective Camera Resolution	3 Megapixel
Video
Video Formats	H.264 Motion JPEG
Maximum Video Resolution	2048 x 1536
Lens
Focal Length	4 mm
Network & Communication
Connectivity Technology	Cable
Interfaces/Ports
Network (RJ-45)	Yes
Physical Characteristics
Form Factor	Dome
Height	3.8"
Weight (Approximate)	1.48 lb
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS WEEE
