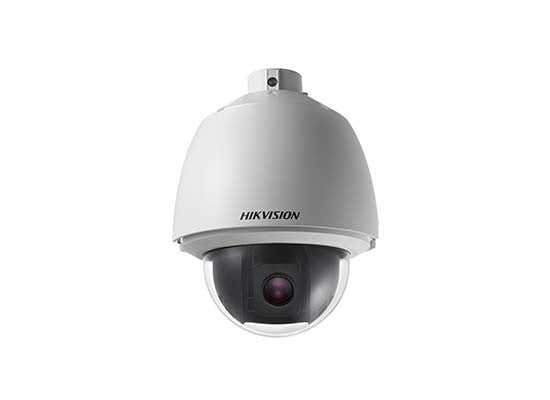

Hikvision DS-2DE5184-AE 2MP PTZ Dome Network Camera

Model: DS-2DE5184-AE

Quick ID: 8813018898

Condition: New

Please wait...

Loading Today's Best Price

Your Price: ^$

3,458.00

Product Details

Product Description

Overview
Specifications

Features

1/2.8" Progressive Scan CMOS
1080P Full HD resolution
20x optical zoom, 16x digital zoom
True Day/Night, 3D DNR, Digital WDR
3D intelligent positioning
Support 24VAC/PoE+ power supply

Downloads

Download Product Datasheet

Download Product User Manual

Download Product Installation Manual

General Information
Manufacturer	Hikvision Usa Inc.
Manufacturer Part Number	DS-2DE5184-AE
Camera
Image Sensor:	1/2.8" Progressive Scan CMOS
Effective Pixels:	2230K pixels
Min. Illumination:	Color: 0.05Lux@F1.6 AGC ON, B/W: 0.01Lux@F1.6
White Balance:	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:	Auto/Manual
S/N Ratio:	>50dB
Day & Night:	IR Cut Filter
Digital Zoom:	16X
Backlight Compensation:	BLC
Digital Noise Reduction:	3D DNR
Wide Dynamic Range:	128X Digital WDR
Shutter Speed:	1~1/10,000s
Focus Mode:	Auto/Semiautomatic/Manual
Lens
Focal Length:	4.7~94mm, 20x
Zoom Speed:	Approx. 3s(Optical Wide-Tele)
Angle of View:	58.3~3.2degree(Wide-Tele)
Min. Working Distance:	10-1,000mm(Wide-Tele)
Aperture Range:	F1.6-F3.5
Pan & Tilt
Pan / Tilt Range:	Pan: 360° endless; Tilt: ~5°90° (Auto Flip)
Pan / Tilt Speed:	Pan Manual Speed: 0.1° ~250° /s, Pan Preset Speed: 300° /s Tilt Manual Speed: 0.1° ~150° /s, Tilt Preset Speed: 200° /s
Proportional Zoom:	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:	256
Patrol:	8 patrols, up to 32 presets per patrol
Power-off Memory:	Support
Park Action:	Pattern/pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Input / Output
Audio Input:	Optional input (LINE input), 2~2.4[p-p]; output impedance: 1KO, ±10%
Audio Output:	Line level, impedance: 600O
Network
Ethernet:	10Base-T/100Base-TX, RJ45 connector
Max. Image Resolution:	1920x1080
Frame Rate:	60Hz: 30 fps (1920x1080), 30 fps (1280x960), 30fps (1280x720)
Image Compression:	H.264/MPEG4
Audio Compression:	G.711u/G.711a/G.726
Protocols:	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View:	Up to 6
Streams:	Dual Streams
Mini SD Memory Card:	Micro SD Slot, up to 32GB
User/Host Level:	Up to 32 levels; 3 Levels: Administrator, Camera control, Live view only
Security Measures:	User authentication (ID and PW), Host authentication (MAC address)
Integration
Application programming:	Open-ended API, support Onvif, PSIA and CGI
Web Browser:	IE 7, IE 8, IE 9, Chrome 8+, Firefox 3.5+, Safari 5+
General
RS-485 Protocols:	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Working Temperature:	Outdoor dome: -30°C~65° (-22°F~149°F)
Humidity:	90% or less
Protection Level:	IP66 standard (outdoor dome) TVS 4,000V lighting protection, surge protection and voltage transient protection
Dimensions:	F200×305mm( F8.66”×12.02”)(Outdoor)
Power:	24VAC/PoE+, Max.22W/14W (Heater on/off)
