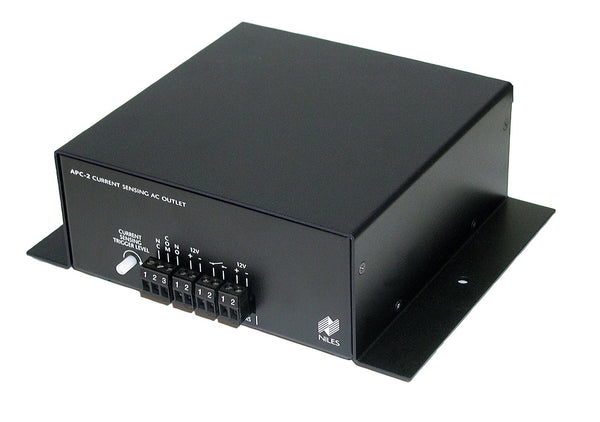

Niles APC-2 Current Sensing Outlet Switcher

The Niles Audio APC-2 Current Sensing Outlet Switcher is great way to automate turning on and off multiple plug-in devices at one time. In simplest terms, the unit senses when one device has been turned on and activates another outlet to automatically turn on other connected devices. For example, connect your home theater components to the Niles Audio APC-2 and then connect the Niles Audio APC-2 to the switched outlet on your amplifier or receiver. When you turn on the receiver the device automatically switches on the rest of the equipment. It's an easy way to turn your home theaters on and off, and the receiver becomes the only device in standby mode, saving energy.

• Three AC Outlets-one Current Sensing (requires Min. 30W Current Draw Differential Between On/off For Reliable Sensing), One Switched, One Unswitched-1,500W Maximum (all Outlets Combined)
• APC-2 Is Activated By Current Sensing Outlet Or 12Volt DC Signal (100mA Minimum)
• 12Volt Control Output For Activating Other Niles Devices Such As The SPK-1, AVS-2, AC-3, Or RFS-1
• N.O. (normally Open) And N.C. (normally Closed) Relay Contacts For Controlling Other Devices Such As Electric Screens, Motorized Lifts And Drapes, Etc.
• Relay Contacts Rated At One Amp, 30V Max. AC/DC

Product Downloads

Download Product Specifications Sheet
