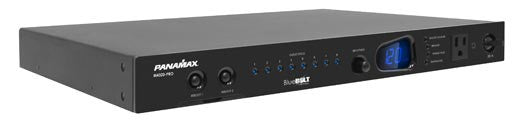

Panamax M4320-PRO 9-Outlet Power Management w/ Interactive Control

• Eight fully controllable/programmable outlets via RS-232C or BlueBOLT
• Linear Filtration with four isolated outlet banks
• Two front-panel programmable reboot buttons
• Removable rack ears (included) with a full depth metal chassis
• BlueBOLT IP system control and monitoring, comes installed (RS232 communication card included, not installed)
• Sleek new design including volt/amp meter, outlet status and warning LEDs
• Dedicated 20 AMP
• Circuit breaker/power switch

Specifications

AC Protection

• Voltage Regulation No
• Total Outlets 9 outlets
• Total Current Capacity 20 A (2400W)
• Thermal Fusing Yes
• Protection Modes L-N, L-G, N-G
• Peak Impulse Current 135,000
• Line Voltage 120VAC, 60 Hz
• Isolated Banks 4
• Initial Clamping Level 200V Peak, 141V RMS
• High Current Outlets 2 outlets
• Energy Dissipation 2700 Joules
• Catastrophic Srge Circuit Yes
• Auto-resetting Under-voltage shutoff 100 VAC ± 2 VAC
• Auto-resetting Over-voltage shutoff 134 VAC ± 2 VAC

LAN Protection

• Wires Protected 8-wires
• Jacks RJ-45
• Compatibility 10/100/1000 BASE-T
• Clamping Level 60V ± 5V

Telco Protection

• Suppression Modes Metallic & Longitudinal
• Lines Protected 2-Wire, Pins 4 & 5
• Fuseless/Auto-resetting Yes
• Connectors RJ-11
• Clamping Level 260V
• Capacitance 30pf (approx.)

Universal Coax Protection

• Shielded Yes
• Insertion Loss < 0.5 dB
• HD 1080 i/p Ready Yes
• Frequency Range 0MHz - 2.2 GHz
• Connectors Female "F", Gold Plated
• Clamping Level 75V
• Bidirectional Yes

EMI / RFI Noise Filtration

• Banks 1,2,3 76db, 5KHz - 250 kHz
• Bank 4, High Current Outlets 46 db, 250 KHz - 1 Mhz


Approximate Dimensions:

• Height: 1.75"
• Width: 19"
• Depth: 12.25"

Approximate Weight:

• Unit: 12 lbs
• Shipping: 14 lbs

Manufacturer Warranty (authorized online retailer): 3 Year Parts & Labor
