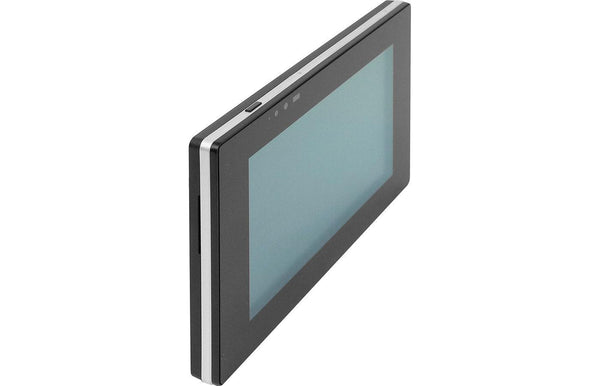

Speakercraft STP7-B Wall-mount 7" Touch-Panel Controller for MRA-664 - Black

SpeakerCraft sTP7, a 7" touch panel controller with a contemporary industrial design for control of the SpeakerCraft MRA-664 multi-room audio control system. The touch panel is wall mountable in either portrait or landscape orientation to best suit the needs of your room and includes a speaker, microphone and color camera to accomodate future enhancements. The high resolution interface makes this unit one of the most popular control devices on the market- second in popularity only to the sHR200 for its sleek appearance and simple user interface. Not all touch panels are created equally - and the SpeakerCraft 7" touch panel leads the pack. The touchscreen is highly responsive, and the proximity sensor wakes it from sleep without any touch required. The front panel glass design makes this controller highly durable, easy to clean and resistant to scratches. The touch panel is available in White and Black finishes and is single wire connected with power over Ethernet.

• Dimensions: Overall 8" wide x 5" height, mounting depth 1.75"
• Screen Size: 7-inch diagonal, 16:9 widescreen
• Resolution: 800W x 480H
• Microphone: Dual Digital Beam Forming for Field Pickup
• Speaker: 2W integrated
• Camera: 640X x 480H
• Type: LAN/PoE: RJ-45
• USB: USB Type A
• Direct Mini USB
• PoE IEEE 802.3at, (power over Ethernet) 13w maximum draw (@48V 270 mA max)

Product Downloads

Download Product Data Sheet
